ALI Certified lift 10,000 lb 2 post lift
Features
10,000 lb lifting capacity
Dual Cylinder direct pull lifting
Single piece Column
Extra long carriage(44")puts less stress on slider blocks
Padded cut-off bar
Two point lock release
Free mounting hardware
Stackable truck adapters(1 1/2",3" and 6")standard
powder coat finish
10,000 lb lifting capacity
Dual Cylinder direct pull lifting
Single piece Column
Extra long carriage(44")puts less stress on slider blocks
Padded cut-off bar
Two point lock release
Free mounting hardware
Stackable truck adapters(1 1/2",3" and 6")standard
powder coat finish
22150 Eight Mile Rd. Southfield MI. 48033
Specializing in car & truck lifts, brake lathes, pipe benders, tire changers, and wheel balancers, and much more! ARESCO is the source
for all of your automotive equipment needs. We carry a full line of equipment and replacement parts for most makes and models. With over
25 years of experience in the automotive industry, we at ARESCO are committed to providing our customers with quality products and
service.
Home Two Post Lifts Four Post Parking Lifts Heavy Duty Lifts Alignment Lifts Scissor Lifts Motorcycle Lifts
Shop Equipment Brake Lathes Pipe Benders Alignment Machines Wheel Balancers Tire Changers Air Compressors
Copyright©2014 www.aresco.org all rights reserved web design by M.Miller

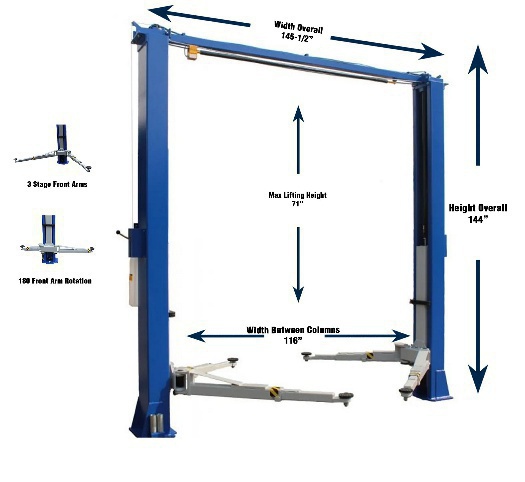

Lift Model TP10KAC-DX
Capacity- 10,000 lbs.
Height Overall -144"
Width Overall w/ Power Unit- 145-1/2"
Max Lift Height- 71"
Width Between Columns- 116"
Min. Pad Height- 4"
Drive Thru Clearance- 104"
Lifting Speed -50S
Asymmetric / Symmetric -Bi-Symmetric
Clear Floor / Floor Plate -Clear Floor
Short Arm Reach – min/max -23"-45"
Long Arm Reach – min/max -41"-59"
Narrow Bay Setting NA
Max Load Per Arm -2,500 lbs
Ship Weight -1,705 lbs
Power 220V – 20 AMP – 1 PH
