AtlasPV-10HP 2 Post Lift
Specializing in car & truck lifts, brake lathes, pipe benders, tire changers, and wheel balancers, and much more! ARESCO is the source for all of your automotive equipment needs. We carry a full line of equipment and replacement parts for most makes and models. With over 25 years of experience in the automotive industry, we at ARESCO are committed to providing our customers with quality products and service.
or 1-877-227-3726
The Atlas® PV series represents the absolute best value for the customer who demands a heavy duty professional grade two post lift at the lowest possible price. Atlas® has been manufacturing the PV series two post above ground lifts for over a decade. Thousands sold! Descriptions such as “bullet-proof”, built like a brick outhouse, tougher than nails, and other such euphemistic phrases are used every day to describe any of the Atlas® PV series models. GET SERIOUS…GET ATLAS®

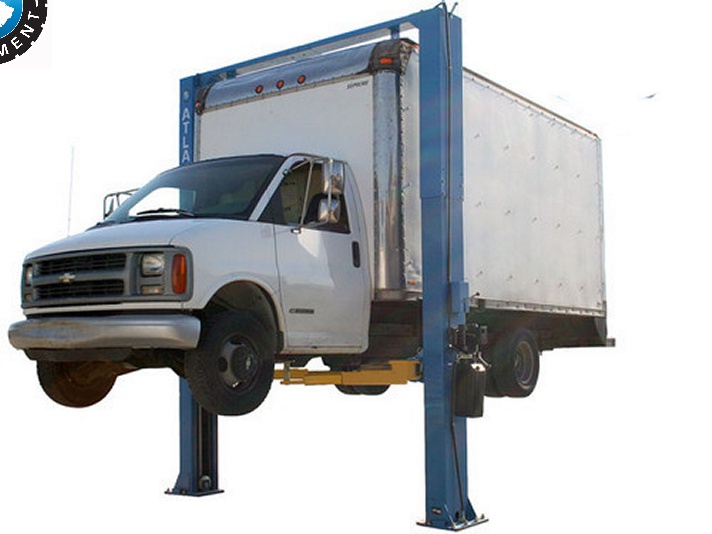

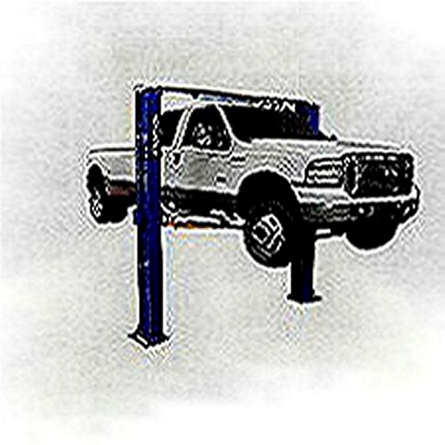

The Atlas® PV-10HP is the taller version of the Atlas® PV-10P two post above ground lift. The over head beam (that connects the two columns) is positioned two feet higher than the over head beam on the Atlas® PV-10P. The taller position of the over head beam allows the Atlas® PV-10HP above ground hoist to lift "taller vehicles". The Atlas® PV-10P and Atlas® PV-10HP are capable of lifting a vehicle a full 79". However, some cube vans, "ladder trucks" and other vehicles that are exceptionally tall, cannot be raised to the full lifting height on the Atlas® PV-10P two post above ground hoist. The over head beam on the Atlas® PV-10P two post lift would prevent the "top" of the vehicle to be raised past 11' 8".

The Atlas® PV-10HP includes a two foot extension kit ( longer hydraulic hoses, longer aircraft quality cables, taller beam extensions) that extend the height of the overhead beam (which connects both columns) an additional two feet. (24 inches) Please remember that you must have a ceiling height of fourteen (14) feet to install the Atlas® PV-10HP above ground lift.

The Atlas® PV-10HP weighs approximately 200 LB. more than the Atlas® PV-10P. All other specifications (add 24" to the height specifications) are the same as the Atlas® PV-10P.
Atlas® PV-10HP Specifications
Setup Low High
Capacity 10,000 LB. 10,000 LB.
Overall Height 166" (13' 10") 170" (14' 2")
Overall Width 137 1/2" (11' 5 1/2") 137 1/2" (11' 5 1/2")

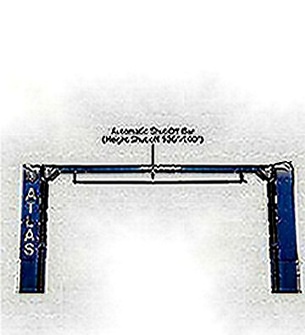

Height To Shut Off Bar 160" (13' 4") 164" (13' 8")
Outside Column to Outside Column 125" (10' 5") 125" (10' 5")
Maximum Lift Height (With Adapters) 82" (6' 10")
Maximum Lift Height (Without Adapters) 71 1/2" (5' 11 1/2")
Minimum Arm Height 4 1/2"
Between Columns 110" (9' 2") 110" (9' 2")
Column Size 14 1/2" x 7 1/2"
Column Thickness of Steel 6mm
Carriage Thickeness of Steel 6mm
Arms Thickness of Steel 6mm
Drive Thru Symmetric/Asymmetric Configuration 96" (8') 90" (7' 6") 96" (8') 90" (7' 6")
Base of Lift 17 1/2" x 20 1/2"
Cable Diameter .375"
Cylinder Diameter 2.4"
Motor/Electrical Requirement 3 HP 220V +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required.
Oil Requirement 3-5 Gallons AW32/AW46
Shipping Weight-2,150LB
