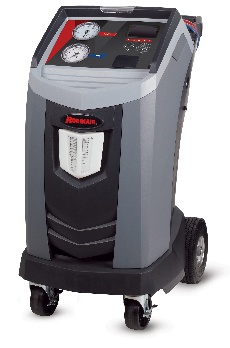

34788-NI A/C Recover, Recycle, Recharge Machine
Premier R-134A Refrigerant Recovery, Recycling, and Recharging Machine

Robinair introduces its next innovation, the 34788NI, featuring an industry leading 98.5% recovery efficiency for standard and hybrid vehicles and fully automatic function.

Robinair 34788NI machines recover, recycle, evacuate, leak-test and recharge R-134a with improved 98.5% efficiency – unmatched by any competitor. The new design features a larger graphical display, automatic features including leak testing, automatic refrigerant refill and oil drain/inject – putting A/C lubricant back into the system. 34788NI also boasts the ability to add a printer, USB data sharing, refrigerant identifier and wireless module for Wi-Fi or Bluetooth® communication. An optional refrigerant charge and oil capacities database is available for North American market vehicles.

•Fully-Automatic Function: Program to recover, vacuum, leak test and charge without operating panel valves.
•Automatic Oil Drain: A display reminds you to empty the graduated container to show the amount of oil to replace.
•Oil Inject: Automatically inject oil back into the vehicle’s A/C systems.
•Refrigerant & Oil Database: A/C system capacities for North American market vehicles
(Optional – not included with the machine)
•Save & print before and after service data: Allows the user to store before and after service information by vehicle and print this information to provide to a customer.
•Visual & Audible Alarm: Notifies the user when service is complete, or if a problem has occurred.
•Vacuum Leak Test: Monitors level after evacuation, informs of possible leak.
•Automatic Air Purge: Eliminates system-damaging air without monitoring gauges or opening valves.
•Automatic Refrigerant Refill: Maintains a user-selectable amount of refrigerant in an internal vessel and signals when it’s time to change supply tank, no monitoring required.
•Vacuum Feature: Defaults to 15 mins, programmable up to 99 mins. “Remaining time” is displayed.
•Display: Multilingual
•Refrigerant Charging: Select a charge mode from high or low side, or use both sides.
•Refrigerant Management System: Displays refrigerant use and monitors remaining filter life. Prompts appear when 1/3 of filter life remains.
•Optional Printer
•Optional Refrigerant Identifier

Tech Specs:

36.00in x 24.00in x 48.50in
232.00 lb
Product Specs:
Operating Range:
32° - 120°F (0°-50°C)
Recovery Performance: >95% at 70 to 75° F (21 to 24°C) <30 minutes
Voltage: 125 VAC 60 Hz
Charge Performance: +/- 0.5 oz at 70° to 75° F (+/- 15g at 21° to 24° C)
Display: 5 cm x 9 cm graphical display
Filter-Drier Capacity: 150 lb (75kg), spin-on type
Hoses: 9 ft (2.75 m)
Weight: Approximately 230 lbs. (103 kg)
Compressor: 3/8 hp, pressure protected, oiled, hermetically sealed
Dimensions(HxWxD): 48.5 in x 24 x 36 (123 cm x 61 cm x 91 cm)
Vacuum Pump: 1.5 cfm Dual Stage, 29.9 InHg
Languages: English, French, Spanish, Portuguese
Internal Cylinder: 30 lb. DOT
Certifications: SAE J2788
