Lift Model TP12KC-D
Capacity 12,000 lbs.
Height Overall 165"
Width Overall w/ Power Unit 151"
Max Lift Height 72"
Width Between Columns 122"
Min. Pad Height 5.5"
Drive Thru Clearance 109"
Lifting Speed 50S
Asymmetric / Symmetric Symmetric
Clear Floor / Floor Plate Clear Floor
Short Arm Reach – min/max 37-5/8" – 56-3/4"
Long Arm Reach – min/max Same
Narrow Bay Setting NA
Max Load Per Arm 3,000 lbs.
Ship Weight 2,295 lbs
Power 220V – 20 AMP – 1 PH
Capacity 12,000 lbs.
Height Overall 165"
Width Overall w/ Power Unit 151"
Max Lift Height 72"
Width Between Columns 122"
Min. Pad Height 5.5"
Drive Thru Clearance 109"
Lifting Speed 50S
Asymmetric / Symmetric Symmetric
Clear Floor / Floor Plate Clear Floor
Short Arm Reach – min/max 37-5/8" – 56-3/4"
Long Arm Reach – min/max Same
Narrow Bay Setting NA
Max Load Per Arm 3,000 lbs.
Ship Weight 2,295 lbs
Power 220V – 20 AMP – 1 PH

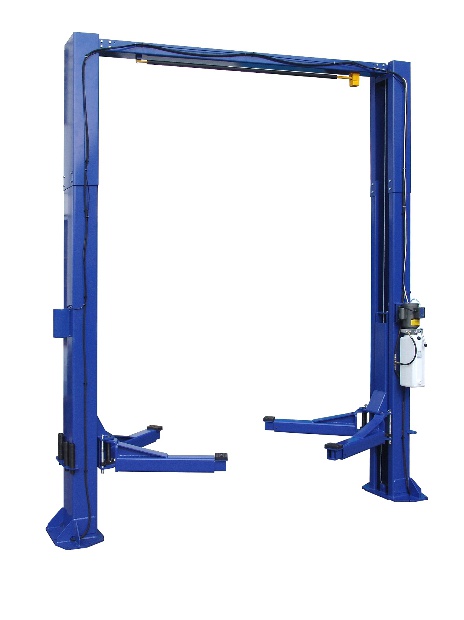

TWO POST CLEAR FLOOR
TP12KC-D
Two Post Clear Floor
12,000 lbs Capacity
Symmetric Arms
Rubber Door Guards
Direct Drive push Cylinders
Single Point pneumatic Lock Release
Heavy Duty Arm Restraint System
Drop-in Lift Pads
Stackable Adapters Included
External hose guards
TP12KC-D
Two Post Clear Floor
12,000 lbs Capacity
Symmetric Arms
Rubber Door Guards
Direct Drive push Cylinders
Single Point pneumatic Lock Release
Heavy Duty Arm Restraint System
Drop-in Lift Pads
Stackable Adapters Included
External hose guards
