IDEAL PSB-SDD26 Paint Booth
or 1-877-227-3726

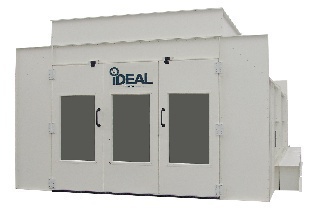

iDeal PSB-SDD26 Paint Booth w/Side Down Draft
iDEAL's Side Down Draft Paint Spray Booth is precision constructed with Heavy Duty 18" gauge galvanized steel panels, powder coated both inside and out. Designed in accordance with NFPA codes and OSHA national requirements, our Side Down Draft Booth offers superior air flow performance granting you a clean work environment for a great finish.
High quality, heavy duty precision construction, coupled with premium quality components and features, all working together to give you The iDEAL difference!
- No Hidden Costs!
- Reduced Lead Times - In Stock Ready to Ship!
- One Stop Shop for a Complete Paint Spray Booth!
Features
Heavy-Duty 18 gauge panel construction
Powder Coat Finish inside & outside
5/16" Nut & bolt type construction
Tri-fold & side personnel doors with viewing windows
Precision punched panels on 6" centers
UL Listed control panel, solenoid, light fixtures, fan motors & door limit switches
(2x) 8' chimney stack assemblies
Intake & exhaust filters
T-8, 32W lamps
Manometer
All connection & mounting hardware
There is no general contractor needed, however once the booth is installed a licensed electrician will need to be there to do all final hook ups. In addition, you or licensed electrician will need to get with the city to make sure codes are met since every city/state is different.
There are no states that we are aware of that could cause the iDeal booth to not be legal due to air quality standards.
Available in all states. However, if in NY we recommend checking to make sure it complies to code first due to NY's has VERY strict codes!
iDEAL's Side Down Draft Paint Spray Booth is precision constructed with Heavy Duty 18" gauge galvanized steel panels, powder coated both inside and out. Designed in accordance with NFPA codes and OSHA national requirements, our Side Down Draft Booth offers superior air flow performance granting you a clean work environment for a great finish.
High quality, heavy duty precision construction, coupled with premium quality components and features, all working together to give you The iDEAL difference!
- No Hidden Costs!
- Reduced Lead Times - In Stock Ready to Ship!
- One Stop Shop for a Complete Paint Spray Booth!
Features
Heavy-Duty 18 gauge panel construction
Powder Coat Finish inside & outside
5/16" Nut & bolt type construction
Tri-fold & side personnel doors with viewing windows
Precision punched panels on 6" centers
UL Listed control panel, solenoid, light fixtures, fan motors & door limit switches
(2x) 8' chimney stack assemblies
Intake & exhaust filters
T-8, 32W lamps
Manometer
All connection & mounting hardware
There is no general contractor needed, however once the booth is installed a licensed electrician will need to be there to do all final hook ups. In addition, you or licensed electrician will need to get with the city to make sure codes are met since every city/state is different.
There are no states that we are aware of that could cause the iDeal booth to not be legal due to air quality standards.
Available in all states. However, if in NY we recommend checking to make sure it complies to code first due to NY's has VERY strict codes!
Specifications PSB-SDD26
CFM 14,000 @ .5 Static Pressure
Lighting 10ea T-8 Light Fixtures, Four Bulb 24"
Fan/Motor (2X) 24" Tube Axial Fan -2HP-3HP 230/460Vac 60Hz
Non-Spark, NEMA Rated
Electric 3 Phase - Standard
Single Phase - Optional
Booth Dimensions 26'L x 14'W x 9'3" (Inside) / 28'-1/4"L x 17'-8"W x 11'3"H (Outside)
UL Listed lighting
fixtures and controls
fixtures and controls
Powder coated finish
(inside & out)
(inside & out)
5/16" nut & bolt
installation
installation
(2x)8' Exhaust
Chimney Stack
assemblies
Chimney Stack
assemblies
Heavy Duty
18 guage panel
construction
18 guage panel
construction
Tri-fold and Personnel
doors with viewing windows
doors with viewing windows
