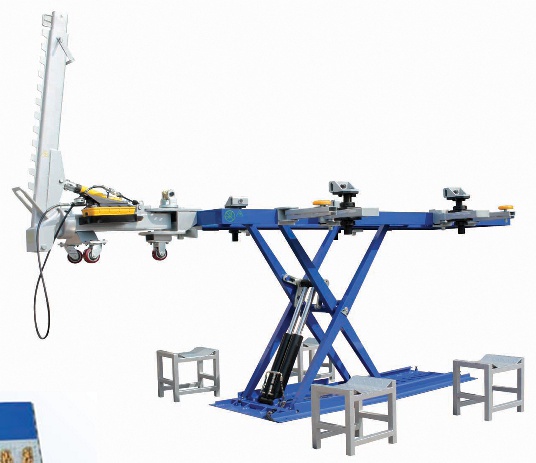

Frame Straightener Machine
Model #FR-55

Universal positioning swivel lifting arms for full service
4 wheel support benches to simplify clamp set-up

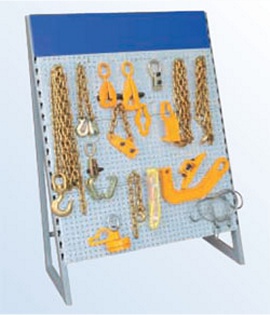

Pull tools and board optional
6 ton heavy-duty post with single point,pneumatic lock release system and multi-angle pulling

Complete tool board Optional
or 1-877-227-3726
Specifications FR-55
Working Capacity 5,500 lbs

Overall Length 173.25" (4401 mm)
Deck Length 123.62" (3140 mm)
Deck Width 37" (940 mm)
Deck Heights 4.75" to 63" (120 mm - 1600 mm)
Tower Pull Force 10 Ton (100KN)
Towere Air/Hydraulic Max Pressure 10,000 psi (70MPa)
Required Air Power 100 - 120 PSI (0.6 - 0.8 MPa)

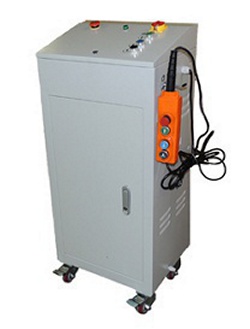

Console Electric Power 220VAC - 20 Amp, 1PH
Ship Weight 3,105 lbs.
Package Dimensions 125" L x 38"W x 58"H
