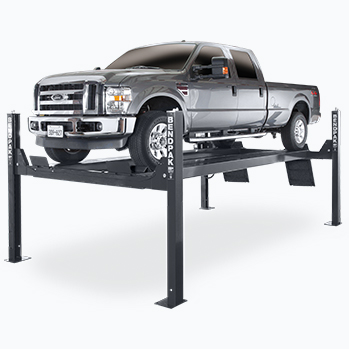

Bendpak 9,000 lb Four Post Lifts
Specifications
Lifting Capacity-14,000 lbs
Height of columns-93"
Runway Minimum Height-7 5/8"
Maximum Rise-70"
Maximum Lifting Height-77 5/8"
Width Between Posts-120"
Runway Width-20"
Width between runways-37 1/2" to 51"
Minimum Wheelbase at Rated Capacity-165"
Minimum Wheelbase at 75% Capacity-140"
Minimum Wheelbase at 50% Capacity-115"
Minimum Wheelbase at 25% Capacity-95"
Locking Positions-13
Lock Spacing-Every 4"
Lifting Time-60 seconds
Motor Rating-220v 60hz 1ph
Features
Mid- to long- style approach ramps for low ground clearance vehicle
Runways include rail-kit for optional accessories
Single hydraulic cylinder mounted underneath runway
Fully enclosed lifting cables,safety locks and sheaves
Internal anti-sway slider blocks in each column
Features heavy-duty 1/2" aircraft cable
Safety locks enclosed in columns minimize pinch points
Oversized sheave diameter reduces cable fatigue
Oversized self-lubricating cable rollers
Rugged 1 3/4" roller axles
Multi-position safety locks in each column
Customizable power unit location
Approach ramps incorporate built-in rear-wheel chocks
Independent backup slack-cable safety latches
Runways feature non-skid surface
ETL approved
Mid- to long- style approach ramps for low ground clearance vehicle
Runways include rail-kit for optional accessories
Single hydraulic cylinder mounted underneath runway
Fully enclosed lifting cables,safety locks and sheaves
Internal anti-sway slider blocks in each column
Features heavy-duty 1/2" aircraft cable
Safety locks enclosed in columns minimize pinch points
Oversized sheave diameter reduces cable fatigue
Oversized self-lubricating cable rollers
Rugged 1 3/4" roller axles
Multi-position safety locks in each column
Customizable power unit location
Approach ramps incorporate built-in rear-wheel chocks
Independent backup slack-cable safety latches
Runways feature non-skid surface
ETL approved
Overall Width-130"
Outside Length-243"
Overall Length-271"
Shipping Weight-2,105 lbs
Shipping Dimensions-204" x 22" x 40"
Options available
Drive-thru ramps
Oil drip trays
Solid deck for increased storage capacity
4,500 lb air/hydraulic rolling jacks
Drive-thru ramps
Oil drip trays
Solid deck for increased storage capacity
4,500 lb air/hydraulic rolling jacks
Electric/Air Work
Station(WSA-100)
(5210436)
(5210436)
Air Bottle
(55215306)
(55215306)
Diamond Plate Deck
Set(5375645)
Drip Trays
(5700301)
(5700301)
JP-3 Jack Platform
(5175800)
(5175800)
JP-6 Jack Platform
(5175349)
(5175349)
DP-30 Rolling Drain Pan
(5150509)
(5150509)
Caster Kit
(5210997)
(5210997)
AK-14 Airline Kit
(5210435)
(5210435)
Model # HDS-14X
