Atlas BP8000 2 post lift

BP8000 Base-Plate Two Post Lift

8,000 lb. Capacity
Dual Hydraulic
Chain-Over Cylinders
Single-Point Lock Release
2-Stage Symmetric Arms
Automatic Arm Restraints
Base-Plate Design
Powder Coat Finish

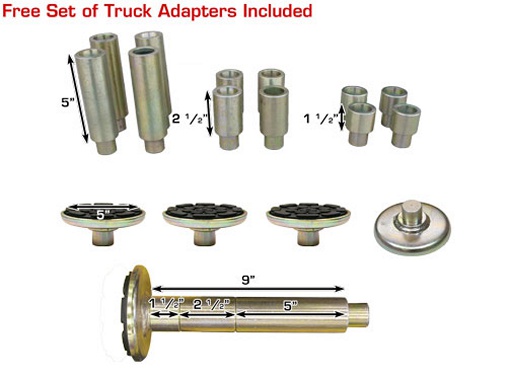

Free Truck Adapters
Mounting Hardware
5-Year Structural, 1-Year Hydraulic Warranty

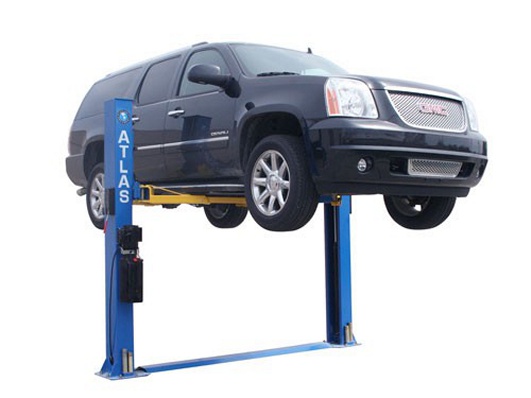

The Atlas® BP8000 is a base-plate two-post lift designed for low ceiling garages. The total column height is 108"� (9'). This lift features a single-point lock release, automatic arm restraints, symmetric arms, double safety lock system, powder coat finish, and heavy-duty dual hydraulic chain-drive cylinders (one cylinder in each column).

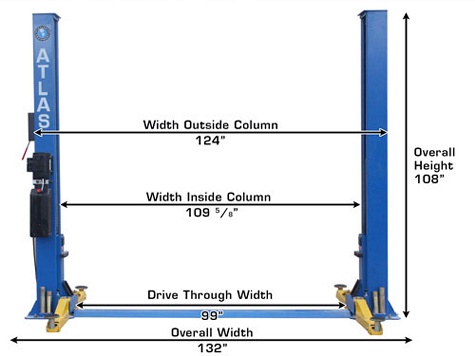

Atlas® BP-8000 Specifications
Capacity 8,000 lb.
Overall Height 108" (9’)
Overall Floor Width 132�” (11’)

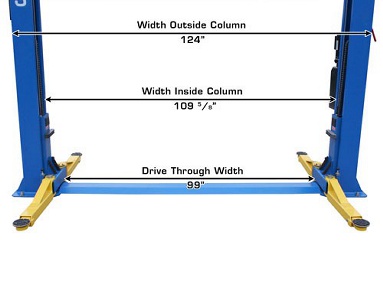

Outside Column To Outside Column 124" (10’ 4")
Maximum Lift Height (Without Adapters) 70 1/2" (5’ 10 1/2�”)

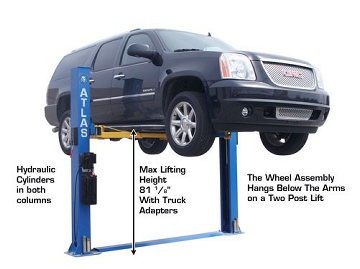

Maximum Lift Height (With Adapters) 81 3/8" (6’ 9 3/8�”)
Minimum Pad Height 3 1/2�”
Inside Column 109 5/8�” (9’1 5/8")
Drive Thru 99�” (8’ 3")

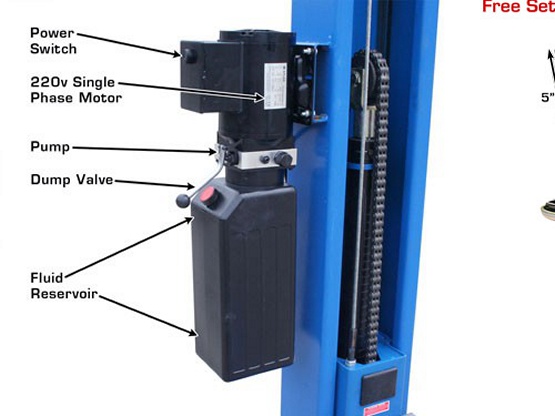

Motor/Electrical Requirement 220 Volt, Single (1) Phase;
A 30 amp Breaker Is Recommended
Shipping Weight 1,300 lb.
