Atlas Platinum-PVL-12 2 Post Lift
1-877-2ARESCO
or 1-877-227-3726
Atlas Platinum PVL-12 ALI
Certified 12,000 Lbs. Capacity
2 Post Lift
The Atlas Platinum PVL-12 is an ALI CERTIFIED overhead 12,000 lbs. capacity two post lift designed to accommodate both long wheel base trucks and passenger cars. The distance between the symmetrical columns is almost 123" with a drive through space of over 108". The extra distance between the symmetrical columns will allow the widest of vehicles to be lifted.
The Atlas Platinum PVL-12 is an ALI CERTIFIED overhead 12,000 lbs. capacity two post lift designed to accommodate both long wheel base trucks and passenger cars. The distance between the symmetrical columns is almost 123" with a drive through space of over 108". The extra distance between the symmetrical columns will allow the widest of vehicles to be lifted.
Atlas® Platinum PVL-12 Specifications
Capacity 12,000 lb.

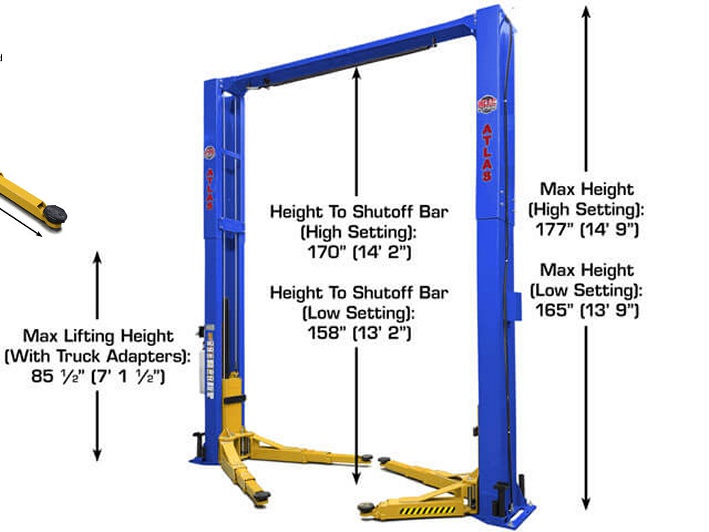

Overall Height Low Setting: 165" (13' 9"); High Setting: 177" (14' 9")
Height To Shut Off Bar Low Setting: 158" (13' 2"); High Setting: 170" (14' 2")
Floor Width 150 3/8" (12' 6 3/8")
Overall Width (with motor) 154 3/4" (12' 10 3/4")
Outside Column to Outside Column 137 5/8" (11' 5 5/8")
Clearance Between Columns 122 1/4" (10' 2 1/4")
Drive Thru 108 5/8" (9' 5/8")
Maximum Lift Height with Truck Adapters 85 1/2" (7' 1 1/2")
Maximum Lift Height without Truck Adapters 73 5/8" (6' 1 5/8")
Minimum Lowered Height 6"
Column Dimensions 7 3/4" x 14 1/2"
Column Base Dimensions 17 1/2" x 20 1/2"

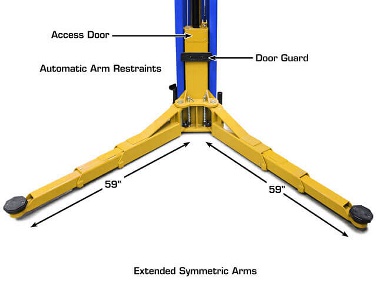

Arm Length 32 1/4" - 57 1/2"
Thickness of Steel 6mm
Motor/Electrical Requirement 220 Volt, Single (1) Phase;
A 30 amp Breaker Is Recommended
Shipping Weight 2,425 lb.
Capacity 12,000 lb.
Overall Height Low Setting: 165" (13' 9"); High Setting: 177" (14' 9")
Height To Shut Off Bar Low Setting: 158" (13' 2"); High Setting: 170" (14' 2")
Floor Width 150 3/8" (12' 6 3/8")
Overall Width (with motor) 154 3/4" (12' 10 3/4")
Outside Column to Outside Column 137 5/8" (11' 5 5/8")
Clearance Between Columns 122 1/4" (10' 2 1/4")
Drive Thru 108 5/8" (9' 5/8")
Maximum Lift Height with Truck Adapters 85 1/2" (7' 1 1/2")
Maximum Lift Height without Truck Adapters 73 5/8" (6' 1 5/8")
Minimum Lowered Height 6"
Column Dimensions 7 3/4" x 14 1/2"
Column Base Dimensions 17 1/2" x 20 1/2"
Arm Length 32 1/4" - 57 1/2"
Thickness of Steel 6mm
Motor/Electrical Requirement 220 Volt, Single (1) Phase;
A 30 amp Breaker Is Recommended
Shipping Weight 2,425 lb.
Features Information
ALLY Hydraulic Power Units
5 Year Structural & 2 Year Hydraulic Warranty
CE Tested And Approved
Electrical Requirements
Ally's 2 Year Hydraulic Power Unit Warranty
Ally's AL3500 Power Unit
ALLY Hydraulic Power Units
5 Year Structural & 2 Year Hydraulic Warranty
CE Tested And Approved
Electrical Requirements
Ally's 2 Year Hydraulic Power Unit Warranty
Ally's AL3500 Power Unit
