Atlas Platinum PVL-9BP ALI Certified Baseplate 9,000 lbs. Capacity 2 Post Above Ground Car Lift

The Atlas Platinum PVL-9BP is an ALI CERTIFIED, 9000 LB capacity, base-plate two-post lift designed for professional service centers. The open-top design of this lift makes it ideal for garages with low ceilings. The total column height is 111 1/8"� (9' 3 1/8"). The Atlas Platinum PVL-9BP can lift a range of the most common vehicles on the market, both foreign and domestic, while also having the capacity to handle both full-size pickups and is backed by one of the Industry’s best warranties.

This product features an ALLY Hydraulic AL3000 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

Specifications

Atlas Platinum PVL-9BP
Capacity-9,000 lb
Overall Height-111(9' 3 1/8")

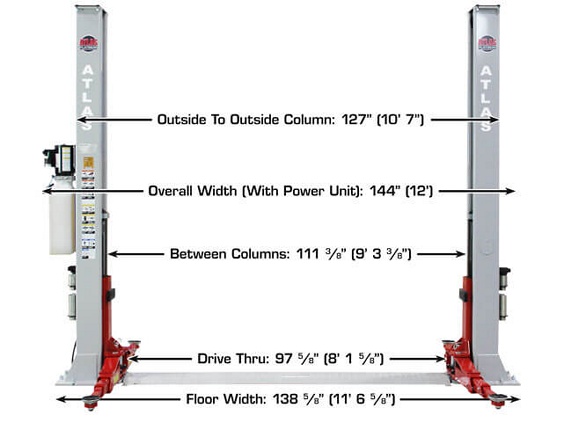

Floor Width-138 5/8"(11' 6 5/8")
Overall Width-(with power unit)-144"(12')
Outside Column to Outside Column-127"(10' 7")
Maximum Lift Height-74 3/4"(6'2 3/4")
Minimum Lowered Height-5"

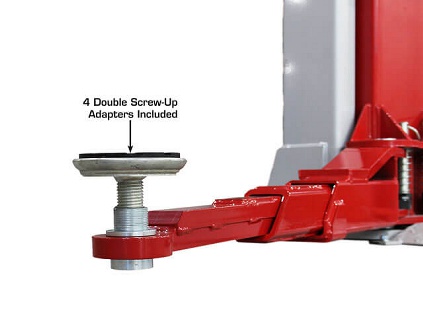

Adaptor Height-3" & 6"
Inside Column to inside Column-111 3/8"(9' 3 3/8")
Drive-Thru-97 5/8"(8' 1 5/8")

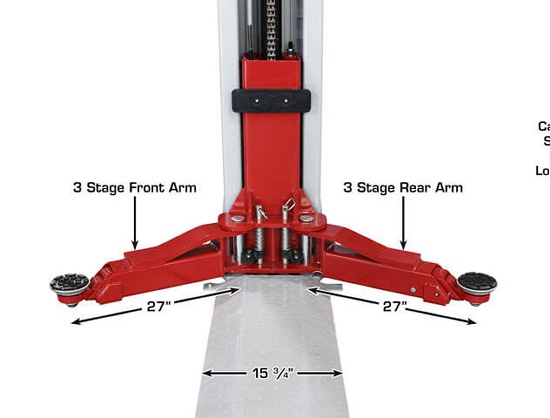

Arm Length-30 1/8"-46"

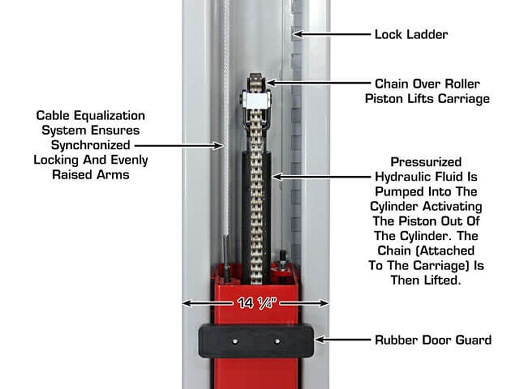

Column Measurement-14 1/4" x 7 5/8"
Base of Column Measurement-20 1/2" x 19 1/2"
Motor/Electrical Requirement-220 Volt,Single Phase
30 Amp Breaker is recomended
Shipping Weight-1,700 lb.
Minimum concrete thickness 6"
