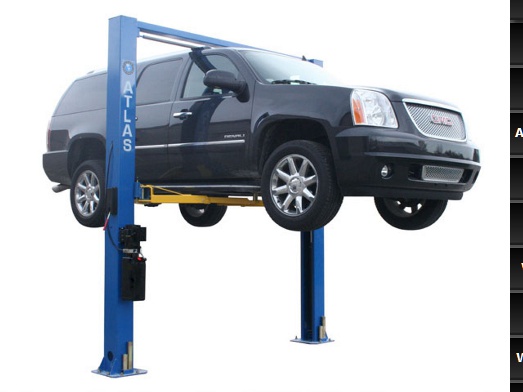

Atlas® Automotive Equipment 9OHSC (SS) Symmetric 2 Post Lift 9,000 lbs

The Atlas® 9OHSC two post above ground lift is the perfect choice for those smaller commercial repair facilities or The Mr. Homeowner who demands the highest quality at the absolute best price. The Atlas® 9OHSC is a TRUE 9,000 lb. capacity two post lift that offers a great value to the customer. The Atlas® 9OHSC is engineered and manufactured to lift vehicles ranging from Smart Cars® to a Suburban®.

The current model of 9OHSC now comes with 3-stage front arms instead of the old 2-stage, giving more flexibility to your lifting points.

The Atlas® 9OHSC has single piece columns and extra long carriages to ensure years of trouble free service. The single piece columns require the customer to have a ceiling of at least 12 feet to stand up the column.

A single piece column coupled with the longer carriage offers unparalleled structural support for your types of lifting requirements.

The Atlas® 9OHSC incorporates a single piece 11’ 10” formed column and an extra long carriage that provides maximum column and arm strength to lift and support a 9,000 lb. vehicle. Click here to see what other customers think about the Atlas® 9OHSC!the event of a slack or broken chain.

Features
9,000 LB. Capacity
Symmetric Columns
Super Symmetric Arms
"Padded" Shut-Off Bar
Atlas® Powder Coat Finish
Single Point Lock Release
Clear Floor Design
Automatic Arm Restraints
Dual Hydraulic Chain-Drive Cylinders
Mounting Hardware Included
Shipping Weight: 1,404 lbs.

Specifications 9OHSC (SS)
Capacity 9,000 lbs
Lifting Time N/A
Overall Height 142" (11' 10")
Padded Bar Height 135" (11' 3")
Overall Width 133 ½" (11' 1 ½" )
Outside Column To Outside Column 125 ½" (10' 5 ½")

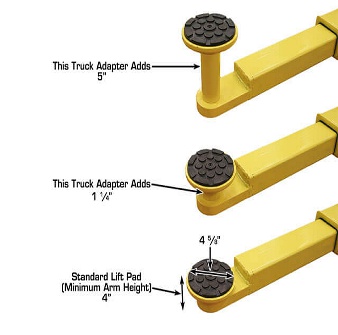

Maximum Lift Height w/o Adapters 70 " (5' 10 ?")
Maximum Lift Height w/Adapters 81 " (6' 9 ?")
Minimum Arm Height 4 ¼"
Inside Column 109 ½" (9' 1 ½")
Column Size 8" x 9 "
Column Thickness of Steel 5mm
Carriage Thickness of Steel 5mm
Arms Thickness of Steel 6mm
Carriage Height 57 ½"
Drive Thru 100 ¾" (8' 4 ¾")
Base of Lift 16 ¾" x 17 ¾"
Cable Diameter .375"
Motor/Electrical Requirement 3 HP / 220V single (1) phase / 30 amp breaker is required.
Oil Requirement 3-5 Gallons AW32/AW46
Shipping Weight 1,404 lbs.
Requires a minimum of 4" of concrete with 3000 psi
