Atlas Platinum PVL-10ALI

The ALI CERTIFIED Atlas Platinum PVL-10 was engineered and built to offer a commercial grade above ground lift to those customers who have "fallen in love" with the reliability offered by the Double S column design and symmetric columns. Tens of thousands of above ground lifts incorporating the Double S column design have been sold worldwide over the past two decades. The Double S column design was so revolutionary, that it was protected by a patent. That patent has now expired.

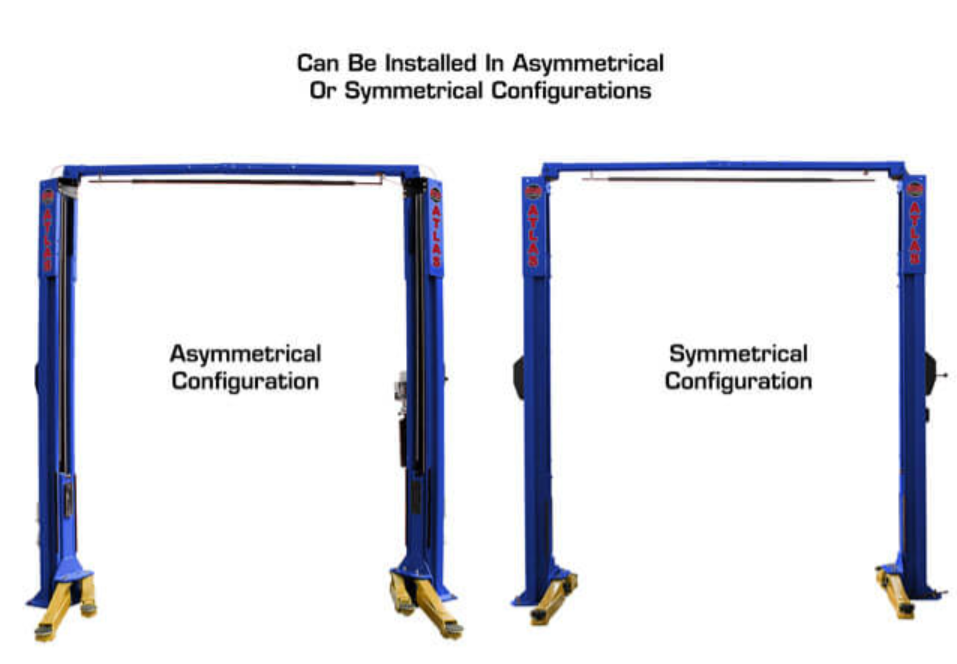

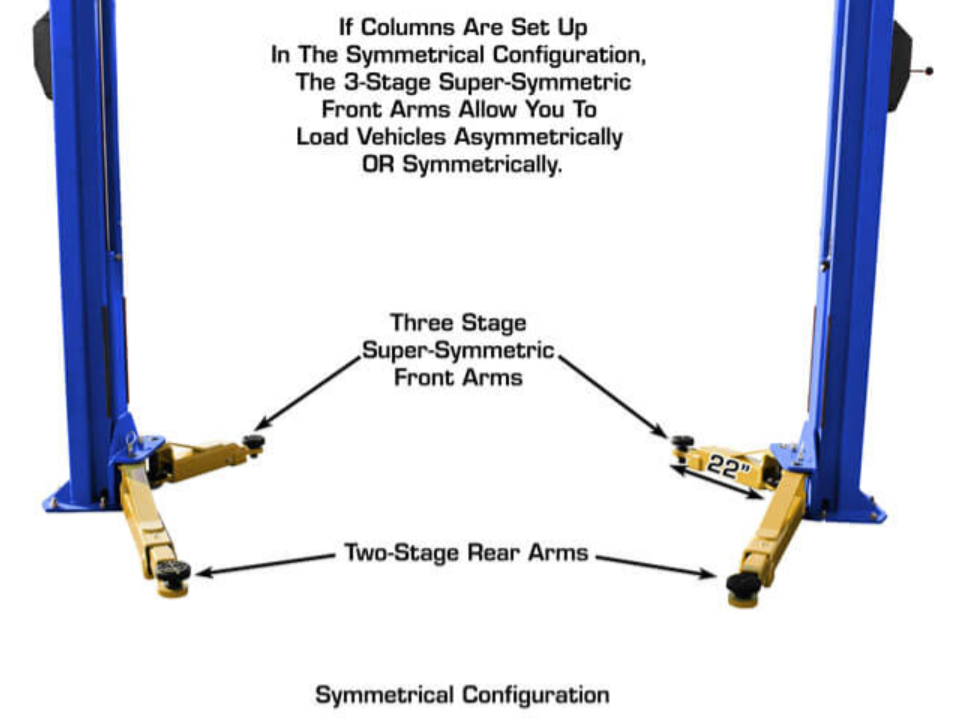

The Atlas Platinum PVL-10 can be installed with the columns positioned symmetrically or asymmetrically. When the columns are installed in the asymmetrical configuration, there may be some benefit to open car doors. When the columns are installed in the symmetric configuration there is more width between the columns. Please check the specifications page and picture gallery to determine which height setting and column configuration (asymmetrical or symmetrical) would be the best for your application. Both column configurations offer easy vehicle access and superior vehicle lift point support due to the three stage front arm design.

The Atlas Platinum PVL-10 features three (3) stage telescoping front arms, double screw rubber/metal adapters with truck height extensions, protective rubber pads mounted to the carriage , rubber column guards, and a price that cannot be matched.

Atlas Platinum PVL-10 Specifications
Setup High Low (requires spacers)*
Capacity 10,000 LB. 10,000 LB.
Front Arm Length (43 1/2" - Max); (22" - Min); (31 1/4" - Mid)
Rear Arm Length (58" - Max); (35" - Min)

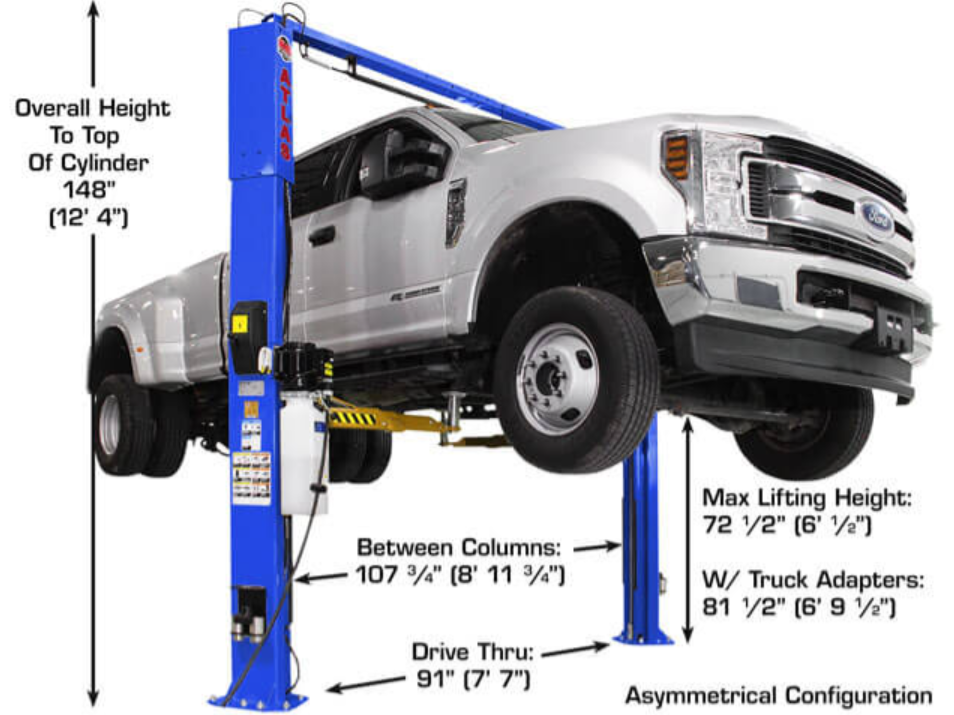

Overall Height With Cylinder 148" (12' 4") 148" (12' 4")*
Overall Height 139 7/8" (11' 7 7/8") 135 7/8" (11' 3 7/8")*
Overall Width 139" (11' 7") (Asymmetrical) 137 1/2" (11' 5 1/2") (Symmetrical)
Outside Column to Outside Column 130" (10' 10") (Asymmetrical)
129 1/4" (10' 7") (Symmetrical)
Maximum Lift Height (With Adapters) 81 1/2" (6' 9 1/2") (highest pad setting) 79 1/4" (6' 7 1/4") (lowest pad setting) 81 1/2" (6' 9 1/2")
(highest pad setting) 79 1/4" (6' 7 1/4") (lowest pad setting)
Maximum Lift Height (Without Adapters) 70" (5' 10") (lowest pad setting), 72 1/2" (6' 1/2") (highest pad setting) 70" (5' 10") (lowest pad setting), 72 1/2" (6' 1/2") (highest pad setting)
Pad Height 4"
Adapter Heights 3" & 6"
Minimum Arm Height 4 1/2"
Between Columns 107 3/4" (8' 11 3/4") (Asymmetrical) 112 1/2" (9' 4 1/2") (Symmetrical)
Column Size 10 1/4" x 7"
Drive Through 91" (7' 7") (Asymmetrical) 99 1/2" (8' 3 1/2") (Symmetrical)
Base of Lift 18" x 15"
Shut-Off Height 134 1/4" (11' 2 1/4") 130 1/4" (10' 10 1/4")*
Cable .315" (8mm)
Column Thickness of Steel : 6mm / double S column design increases column strength
Carriage Thickness of Steel Frame: 8mm
Yoke: 16mm
Arms Thickness of Steel Frame: 6mm
Telescopic Arm: 8mm
Shipping Weight 1,750 Lbs.
Requires a minimum of 4" of concrete with 3000 psi.
All lifts come with a step by step instruction manual.
*See manual for installing spacers for lower height.
*Overall height with cylinder remains the same.
