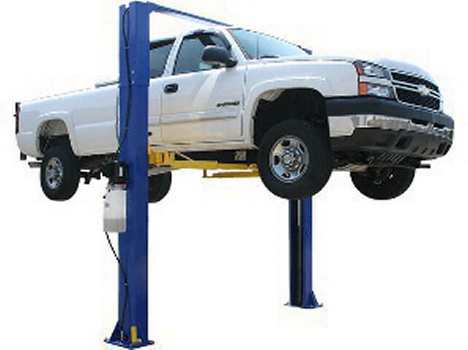

The light duty Atlas® 9KOHX lift is
an economy designed overhead,
clear-floor 2-post lift. The reliable
chain-drive cylinders and dual safety system make
this the perfect choice for “Mr. Homeowner” or small
commercial shops looking to service cars, SUV’s
and light duty trucks. The 9KOHX can be adjusted to
two different height settings, either 11' 6" or 11' 10",
allowing it to fit in almost any standard garage.
The Atlas® 9KOH has symmetric columns and
specially designed arms that can be set in either the
symmetric or asymmetric position. The
asymmetric/symmetric arm design offers an
extremely low lift pad position on the EZ-metric lift
arm configuration. This low pad height will allow the
operator to position the lift arms under most small
cars (with low pick up points) and heavier pick up
trucks. The Atlas® 9KOHX two post “chain over
roller” lifts have a spring loaded Secondary Lock
System (SLS) that automatically engages in the
event of a slack or broken chain.
The 9KOHX is the perfect choice for those who
demand the most lifting capacity at the lowest
possible price.
9,000 lb. Capacity
Overhead, Open-Floor design
Overall Height: 138" (11' 6") or 142" (11' 10")

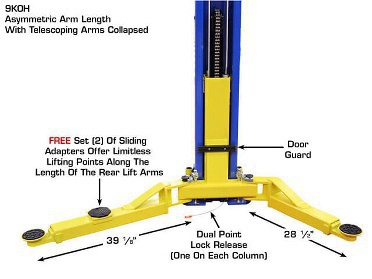

Asymmetric/Symmetric Arms
Automatic Arm Restraints
Dual-Point Lock Release
Rubber Guards on Carriages
Dual Hydraulic Chain-Drive Cylinders
Secondary Lock System
Free 8 Piece Truck Adapter Set
Free set of Sliding Arm Adapters
Mounting Hardware Included
Shipping Weight: 1,450 lbs.
2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

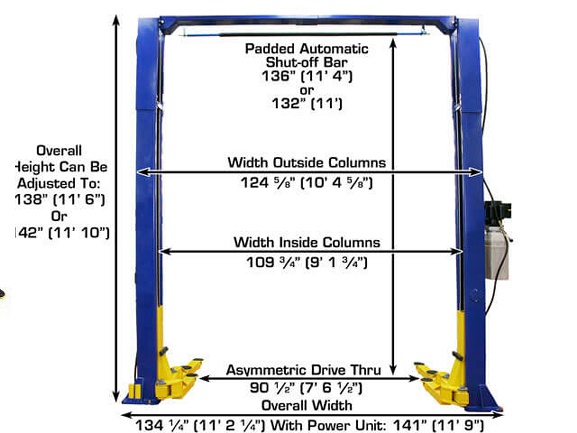

Atlas® 9KOHX Specifications
Capacity 9,000 LB.
Overall Height 138" (11’ 6") or 142” (11’ 10”)
Overall Floor Width 134 1/2" (11’ 2 1/2")
Outside Column to Outside Column 124 7/8" (10’ 4 7/8")
Maximum Lift Height (Without Adapters) 74 1/2"
Maximum Lift Height (With Adapters) 81"
Minimum Arm Height 4"
Inside Column 110” (9’ 2”)
Drive Thru 100” (8’ 4”) Symmetric/ 90 1/2" (7’ 6 1/2”) Asymmetric
Column Size 7 1/4" x 11"
Column Thickness of Steel 5mm
Base Of Lift 14 1/4" x 18"
Motor/Electrical Requirement 220 volt single (1) phase.
A 30 amp breaker is recommended
Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight 1,450 LBS.
Adapter Heights 4 Each 1.5”, 5”
Arm Hole/Adapter Peg Size 1.5”
Requires a minimum of 4" of concrete with a 3000 psi. rating
