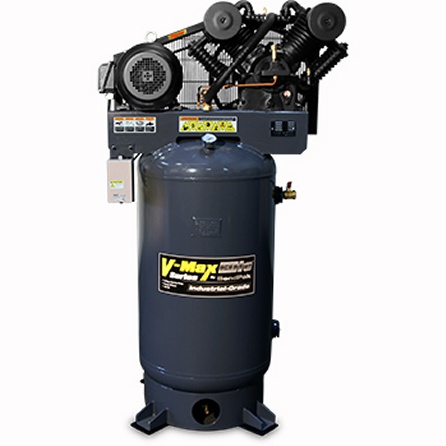

7580V-601 air compressor

Unlock your shop's full potential with the V-Max Elite 7580V-601 air compressor. Featuring the rugged V-Max extreme-duty, four-cylinder pump design, the 7580V-601 is engineered to operate at maximum efficiency under all load conditions. This rugged 2-stage lubricated reciprocating compressor with 100% cast-iron pumps will provide the quality and performance required for every air-intensive application, from automotive and body repair to manufacturing and industrial service.

V-MAX ELITE ADVANTAGES:

7.5 HP or 10 HP energy-efficient motor
Extra-quiet, low-RPM pump
Cast-iron V-Max Elite pump features simple splash lubrication for total reliability and a "V-4" finned cylinder configuration that provides 360° cooling
Proven air-cooled design is economical, reliable and environmentally friendly.
Two compression rings and one oil control ring provide excellent oil control and high efficiency air delivery
Dual drive belts require less belt tension resulting in less load on pump bearings, longer belt life and low vibration
Fully-enclosed belt guard
Cast-iron pump and heads are more stable under heavy workloads and do not warp from heat like aluminum cylinders with a pressed-in sleeves do
ASME rated tank
Large surface area and cooling fins on cylinders and forced-air after-cooler provides efficient heat dissipation for lower operating temperatures and dryer air. Compressor runs cooler, oil life is extended and maintenance is reduced
Tapered roller main bearings provide full contact and support of the crankshaft and needle-type piston pin bearings properly distribute bearing loads
Precision balanced flywheel has forced-air fan blades for optimum compressor cooling and life
Magnetic starter provides thermal overload protection and minimizes start loads providing long life and trouble-free operation
ASME rated safety valve protects the compressor from overpressure and safeguards the operator
Balanced flywheel and counterbalanced crankshaft results in nearly vibration-free operation
Readily accessible disc-valves do not require disassembly of compressor piping for easy accessibility and reduced maintenance cost and downtime
Corrosion resistant tubing for coolers, separators and valves for longer life and reduced maintenance.
Oversized ductile iron crankshaft provides extra strength and longer wear
High-density, die-cast aluminum alloy rods minimize reciprocating weight
Rugged cast iron oil reservoir has convenient sight gauge glass, large oil drain and convenient fill cap.
Automatic pressure switch provides auto start and stop
Integrated pressure unloader valves are built into the intake valve assembly on the compressor head reducing internal pump heat from initial start-up compression
Pressure gauge with service valve
Oversize replaceable air filters

Tank: 80 gallons / 300 L / Vertical Tank
Voltage: 208 - 230 V
Horsepower: 7.5 Hp
Phase: 1 Ph
Hertz: 60 Hz
Running Load Amps (SFA) 32.8-30A
Peak Start-up Amps 68-63A
Recommended Breaker 35A
Noise level: 75 dB
Pump Style: 2-Stage/V-4
Pump RPM: 625 rpm
Motor RPM: 1740 rpm
Lubrication: splash / oil
Cubic feet per minute @ 90 psi: 30.5 CFM
Cubic feet per minute @ max psi: 26.5 CFM
Max psi: 175 psi
Shipping weight: 711 lbs. / 322 kg
Shipping dimensions: 39" x 26" x 70" / 991 mm x 660 mm x 1778 mm
